Multi-level Processor

Multi-level Processor

Processes a file or list of files through multiple levels.

Location
Details
Sub-Programs
Command Line Usage

Location

SeaDAS-Toolbox -> SeaDAS Processors -> multilevel_processor

Details

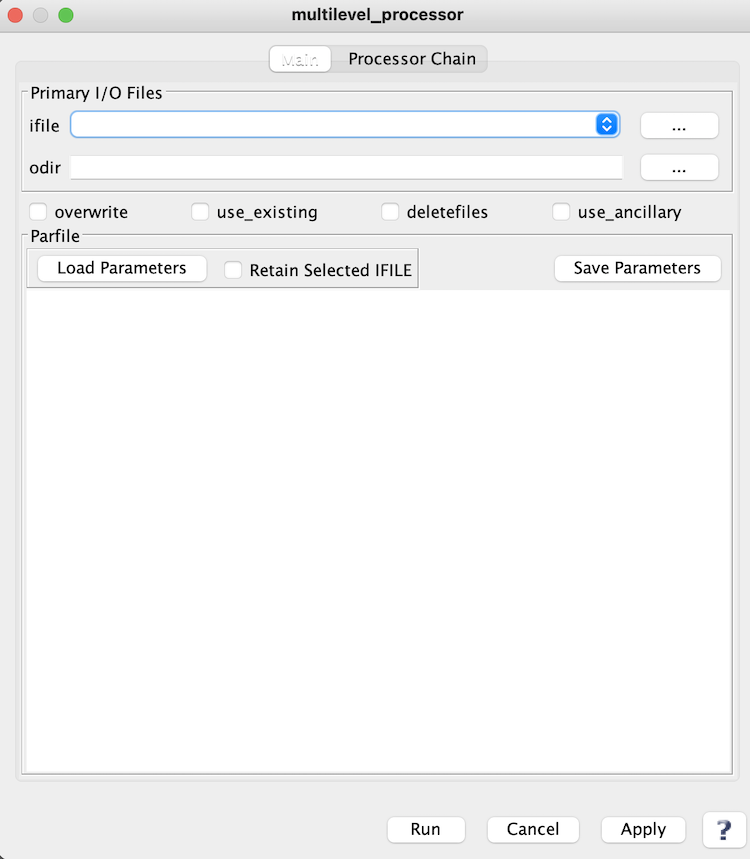

multilevel_processor - Main Tab


Arguments/Keywords
UI Element Name Type Description Required/Optional Default Value
ifile file name Input file or list of files Required none
odir output directory name output directory name Optional none
Parfile text all parameters for each section Required none


Actions/Buttons
UI Element Name Type Description
Browser Button Button Selects the input file/output directory
overwrite Check Box Overwrite existing intermediate and output files
use_existing Check Box Do not re-create intermediate files if they already existe
deletefiles Check Box Delete intermediate files
use_ancillary Check Box Get the ancillary data for l2gen processing
combine_files Check Box Combine Files for l2bin
Load Parameters Button Selects a parfile to load
Retain Selected IFILE Check Box When loading a parfile, use the ifile selected ifile instead of the ifile in the parfile
Save Parameters Button Write the current parfile to a file
Run Button Executes multilevel_processor with arguments provided in the UI
Cancel Button Closes current processor GUI
Apply Button Makes current arguments effective
? Button Displays the help content of the current command

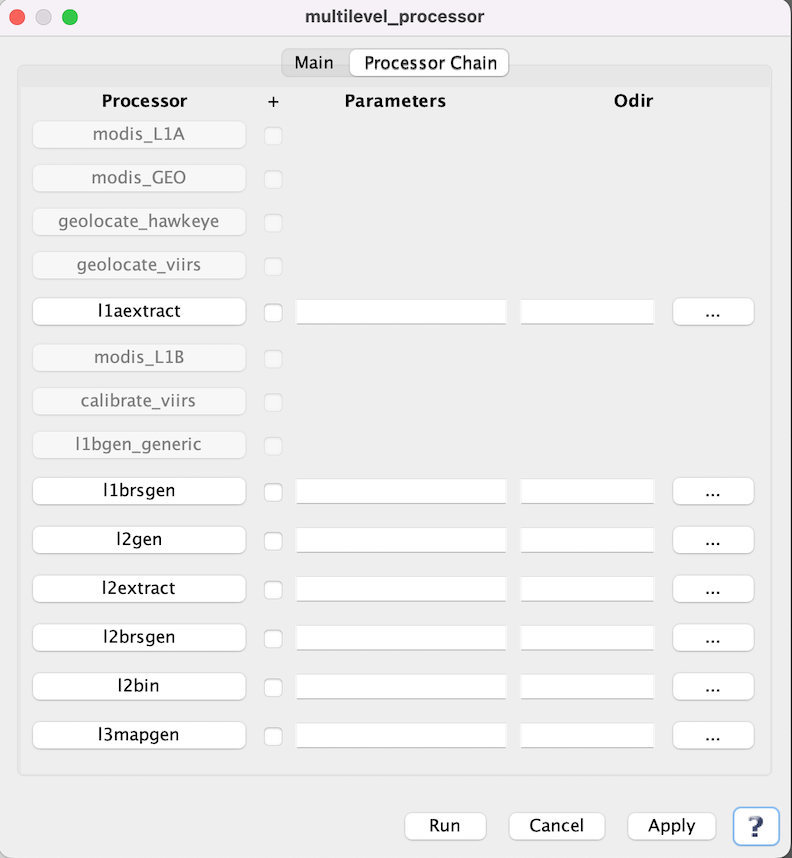

multilevel_processor - Processor Chain Tab


Actions/Buttons
UI Element Name Type Description
Program Buttons Button Opens a GUI window to configure the individual step/program
+ Check Box When selected the processor will be added to the chain
Params Text Parameters passed to this step/program
Browser Button Button Selects the output directory for the processor
Run Button Executes multilevel_processor with arguments provided in the UI
Cancel Button Closes current processor GUI
Apply Button Makes current arguments effective
? Button Displays the help content of the current command


Sub-Programs


Command Line Usage
