l2bin

l2bin

Creates a Level 3 bin file from one or more Level 2 input files.

Location

SeaDAS-Toolbox -> SeaDAS Processors -> l2bin

GUI Usage
Command Line Usage

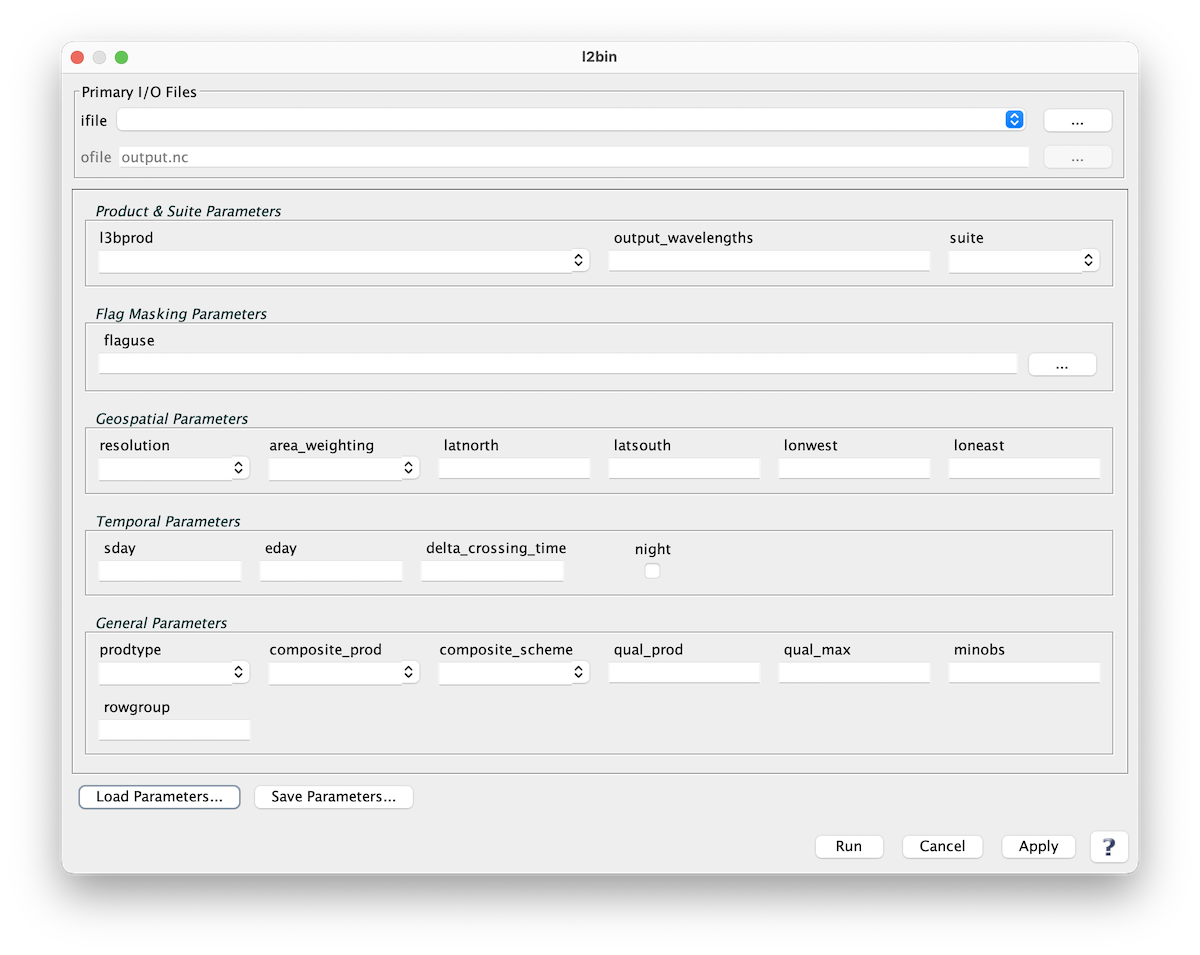

GUI Usage


Arguments/Keywords
UI Element Name Type Description Required/Optional Default Value
ifile ifile input filename/filelist Required
ofile ofile output bin filename Required
area_weighting int Enable area weighting 0: off 1: pixel box 2: pixel bounding box 3: pixel polygon Optional 0
composite_prod string product fieldname Optional
composite_scheme string composite scheme (min/max) Optional
delta_crossing_time float equator crossing time delta in minutes Caveat...if zero, the sensor default equator crossing time will be used This is not necessarily noon Optional 0.0
eday int end datadate (YYYYDDD) [ignored for "regional" prodtype] Optional 2038018
flaguse string flags masked Optional [see /SENSOR/l2bin_defaults.par]
l3bprod string bin products
        Set to "ALL" or "all" for all L2 products in 1st input file.
        Use ':' or ',' or ' ' as delimiters.
        Use ';' or '=' to delineate minimum values.

Optional all products
latnorth float northern most latitude Optional 90
latsouth float southern most latitude Optional -90
loneast float eastern most longitude Optional 0
lonwest float western most longitude Optional 0
minobs int required minimum number of observations Optional 0
night boolean Check for SST night processing Optional false
output_wavelengths string comma separated list of wavelengths for multi-wavelength products Optional ALL
prodtype string product type (Set to "regional" to bin all scans.) Optional day
qual_max int maximum acceptable quality Optional 2
qual_prod string quality product field name Optional
resolution string bin resolution
        HH - 50m
        HQ - 100 m
        Q - 250m
        H  - 0.5km
        1  - 1.1km
        2  - 2.3km
        4  - 4.6km
        9  - 9.2km
        18 - 18.5km
        36 - 36km
        HD - 0.5 degree
        1D - 1 degree

Optional H
rowgroup int number of bin rows to process at once Optional -1
sday int start datadate (YYYYDDD) [ignored for "regional" prodtype] Optional 1970001
suite string suite for default parameters Optional


Actions/Buttons
UI Element Name Type Description
Browser Button Button Selects ifile/ofile
Load Parameters ... Button Reads in previously saved parameters and populates the fields in GUI.
Store Parameters ... Button Saves the current arguments in GUI in a file.
Run Button Executes the l2bin command with arguments provided in the UI.
Cancel Button Closes current processor GUI.
Apply Button Makes current arguments effective.
Open in SeaDAS Checkbox If selected, the ofile will be added to the open products list right after its generation.
? Button Displays the help content of the current command.

Command Line Usage

l2bin 7.1.1 (Jan 30 2025 18:48:02)
7.1.1
Usage: l2bin argument-list

  The argument-list is a set of keyword=value pairs. The arguments can
  be specified on the commandline, or put into a parameter file, or the
  two methods can be used together, with commandline over-riding.

  return value: 0=OK, 1=error, 110=north,south,east,west does not intersect
  file data.

The list of valid keywords follows:

   help (boolean) (alias=h) (default=false) = print usage information
   version (boolean) (default=false) = print the version
        information
   dump_options (boolean) (default=false) = print
        information about each option
   dump_options_paramfile (ofile) = print
        information about each option to paramfile
   dump_options_xmlfile (ofile) = print
        information about each option to XML file
   par (ifile) (alias=parfile) = input parameter file
   ifile (ifile) (alias=infile) = input L2 file name
   ofile (ofile) (default=output) = output file name
   fileuse (ofile) = write filenames of the input files used into this file
   suite (string) = suite for default parameters
   qual_prod (string) = quality product field name
   deflate (int) (default=5) = deflation level.  0=off or 1=low through 9=high
   verbose (boolean) (default=off) = Allow more verbose screen messages
   night (boolean) (default=off) = set to 1 for SST night processing
   qual_max (int) (default=2) = maximum acceptable quality
   rowgroup (int) (default=-1) = # of bin rows to process at once.
   sday (int) (default=1970001) = start datadate (YYYYDDD) [ignored for "regional" prodtype]
   eday (int) (default=2038018) = end datadate (YYYYDDD) [ignored for "regional" prodtype]
   latnorth (float) (default=90) = northern most latitude
   latsouth (float) (default=-90) = southern most latitude
   loneast (float) (default=0) = eastern most longitude
   lonwest (float) (default=0) = western most longitude
   minobs (int) (default=0) = required minimum number of observations
   delta_crossing_time (float) (default=0.0) = equator crossing time delta in
         minutes
         Caveat...if zero, the sensor default equator crossing time will be used
         This is not necessarily noon
   resolution (string) (alias=resolve) (default=H) = bin resolution
         H: 0.5km
         Q: 250m
        HQ: 100m
        HH: 50m
         1: 1.1km
         2: 2.3km
         4: 4.6km
         9: 9.2km
        18: 18.5km
        36: 36km
        1D: 1 degree
        HD: 0.5 degree
        QD: 0.25 degree
   prodtype (string) (default=day) = product type (Set to "regional" to bin all scans.)
   pversion (string) (default=unspecified) = production version
   composite_scheme (string) = composite scheme (min/max)
   composite_prod (string) = composite product fieldname
   flaguse (string) (default=ATMFAIL,LAND,HILT,HISATZEN,STRAYLIGHT,CLDICE,COCCOLITH,LOWLW,CHLFAIL,CHLWARN,NAVWARN,ABSAER,MAXAERITER,ATMWARN,HISOLZEN,NAVFAIL,FILTER) = flags masked [see /SENSOR/l2bin_defaults.par]
   l3bprod (string) (default=ALL) = l3bprod = bin products [default=all products]
        Set to "ALL" or "all" for all L2 products in 1st input file.
        Use ':' or ',' or ' ' as delimiters.
        Use ';' or '=' to delineate minimum values.
   area_weighting (int) (default=0) = Enable area weighting
        0: off
        1: pixel box
        2: pixel bounding box
        3: pixel polygon
   output_wavelengths (string) (default=ALL) = comma separated list of
        wavelengths for multi-wavelength products
   doi (string) = Digital Object Identifier (DOI) string
   oprodname (string) = comma separated list of output L3 product names.
        This option allows the user to specify the output product names which differ from the original l2 product names.
        Usage: original_l2_name:output_l3_name, i.e. oprodname=cloud_flag:cloud_fraction
