C2RCC OLCI Processing Parameters

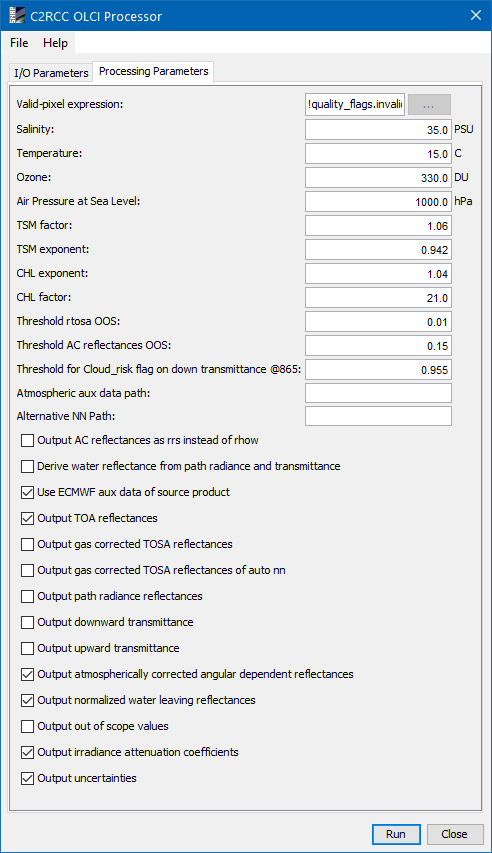

OLCI Processing Parameters

• Valid-pixel expression
  The arithmetic expression defines the pixels which are valid for processing. Pixels which are not valid will be marked as no-data in the target product.
• Salinity
  The value used as water salinity for the scene.
• Temperature
  The value used as water temperature for the scene.
• Ozone
  The value used as ozone if not provided by auxiliary data.
• Air Pressure
  The surface air pressure at sea level if not provided by auxiliary data.
• TSM factor
  TSM conversion factor (TSM = TSMfac * iop_btot^TSMexp). Note: This parameter was formerly named TSMfakBpart. Also the equation to derive TSM from the IOPs has been changed in version 7.0.1 of S3TBX.
• TSM exponent
  TSM conversion exponent (TSM = TSMfac * iop_btot^TSMexp). Note: This parameter was formerly named TSMfakBwit. Also the equation to derive TSM from the IOPs has been changed in version 7.0.1 of S3TBX.
• CHL exponent
  Chlorophyll exponent (CHL = iop-apig^CHLexp * CHLfak).
• CHL factor
  Chlorophyll factor (CHL = iop-apig^CHLexp * CHLfak).
• Threshold rtosa OOS
  Threshold for out of scope of nn training dataset flag for gas corrected top-of-atmosphere reflectances.
• Threshold AC reflectances OOS
  Threshold for out of scope of nn training dataset flag for atmospherically corrected reflectances.
• Threshold for cloud flag on down transmittance @865
  Threshold for cloud test based on downwelling transmittance @865.
• Atmospheric aux data path
  Path to the atmospheric auxiliary data directory. Use either this or the specified products on the I/O Parameters (ozone, air pressure) tab. If the auxiliary data is not available at this path, the data will automatically be downloaded.
• Alternative NN Path
  Path to an alternative set of neuronal nets. Use this to replace the standard set of neuronal nets. For MSI there exits a neural net where ranges of parameters was extended to moderate-to-extreme cases (C2X-Nets). However, this is a parameter which should only used during the development of new neural nets.
• Output AC reflectances as rrs instead of rhow
  Write remote sensing reflectances instead of water leaving reflectances.
• Derive water reflectance from path radiance and transmittance
  Alternative way of calculating water reflectance. Still experimental.
• Use ECMWF aux data of source product
  Use ECMWF auxiliary data (total_ozone, sea_level_pressure) from the source product.
• Output TOA reflectances
  Add TOA reflectances to the target product.
• Output gas corrected TOSA reflectances
  Add TOSA reflectances to the target product.
• Output gas corrected TOSA reflectances of auto nn
  Add TOSA reflectances of the autoassociative neural net to the target product.
• Output path radiance reflectances
  Add path radiance reflectances to the target product
• Output downward transmittance
  Add downward transmittance to the target product
• Output upward transmittance
  Add upward transmittance to the target product
• Output atmospherically corrected angular dependent reflectances
  Add atmospherically corrected angular dependent reflectances to the target product
• Output normalized water leaving reflectances
  Add normalized water leaving reflectances to the target product
• Output of out of scope values
  Add out of scope to the target product
• Output of irradiance attenuation coefficients
  Add irradiance attenuation coefficients to the target product
• Output uncertainties
  Add uncertainties to the target product
